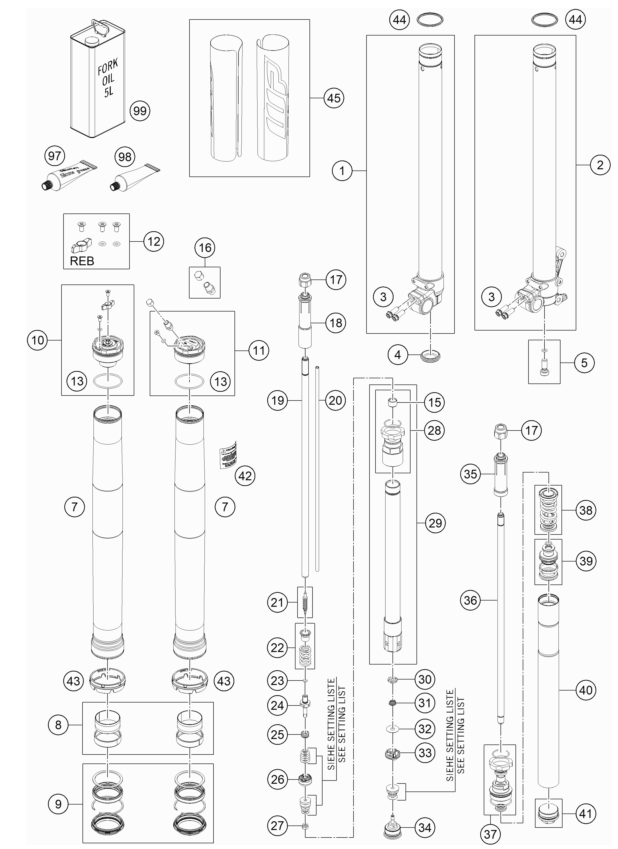

Přední tlumiče - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	43570818S1Axle clamp right + tube 85SX c	7 761 Kč	ks
2.	43570968S1Axle clamp left + tube cpl.	7 761 Kč	ks
3.	0025080206HH collar screw M8x20	80 Kč	ks
4.	48600141Rubber cap 35x10 NBR80	40 Kč	ks
5.	S218700000S0000HS screw M10x23 cpl.	150 Kč	ks
7.	43570982Fork outer tube 44.13x510 dt49	4 620 Kč	ks
8.	R14042GUIDE BUSHING SET	655 Kč	ks
9.	R513GASKET SET	1 055 Kč	ks
10.	43570928SScrew cap M46x1,5 cpl.	1 754 Kč	ks
11.	43570927Sscrew cap M46x1,5 Luft cpl.	1 754 Kč	ks
12.	RP10021Adjuster kit screw cap	308 Kč	ks
13.	43570023O-ring 41x2 NBR70 siliconized	46 Kč	ks
15.	48600430Guide bushing 12x14x10	182 Kč	ks
16.	48601494SVALVE M8X1 INCL. SCREW CAP	817 Kč	ks
17.	43570859Lock nut M12x1 h20 WAF22	181 Kč	ks
18.	43570856Stop 12,2x25x115	823 Kč	ks
19.	48601811Piston rod 12x477,5	1 588 Kč	ks
20.	43570929adjustment tube 6x445,1	467 Kč	ks
21.	48600277SNeedle 4,5x43,6 cpl.	213 Kč	ks
22.	48600578SSpring (13,9) 37-32 rebound cp	568 Kč	ks
23.	48600299O-ring 6x1,2 NBR70	33 Kč	ks
24.	48600576Tap 6x46 rebound	307 Kč	ks
25.	35480377Spring (11,7) 1,5-8 valve	111 Kč	ks
26.	48602002SMidvalve piston assembly d23	568 Kč	ks
27.	40540486Nut M6x0,5 h6,5 WAF10 rebound	111 Kč	ks
28.	43570936SScrewsleeve M27x0,8 cpl.	1 733 Kč	ks
29.	48600870S7Cartridge tube cpl.	5 416 Kč	ks
30.	48600163Nut valve M6x0,5 h6,5 WAF17	111 Kč	ks
31.	48600202Spring (8,5) l6,5 valve	111 Kč	ks
32.	48600061Shim 8x24x0,40	50 Kč	ks
33.	48601934SPiston 6x27,3x9 compression cp	568 Kč	ks
34.	48600586STap compression cpl.	851 Kč	ks
35.	43570819Stop 12,2x25x78,5	823 Kč	ks
36.	48601501Piston rod 12x470	1 757 Kč	ks
37.	48601452S2Screw sleeve M35,5x0,8	1 427 Kč	ks
38.	48601820S1Spring (22) 60-30 rebound cpl.	568 Kč	ks
39.	43570844SPiston 5x34x31,5 mainpiston Fr	823 Kč	ks
40.	48601571S2Tube incl. mounting 410mm air	2 739 Kč	ks
41.	43570845SAdapter M10xM35,5x0,8x25 cpl.	571 Kč	ks
42.	52000315Sticker warning 60x40	378 Kč	ks
43.	43570915Fork protection ring 55,1mm	222 Kč	ks
44.	43570926Stroke indicator d43 red	148 Kč	ks
45.	52000229SETSticker XAXT AER OC 161x214	560 Kč	ks
97.	T14034Fuchs grease IPR (250g)	857 Kč	ks
98.	00062010053special grease AER Fork 400g	1 058 Kč	ks
99.	48601166S1Fork Fluid Viscosity 4.0 5L	2 732 Kč	ks
