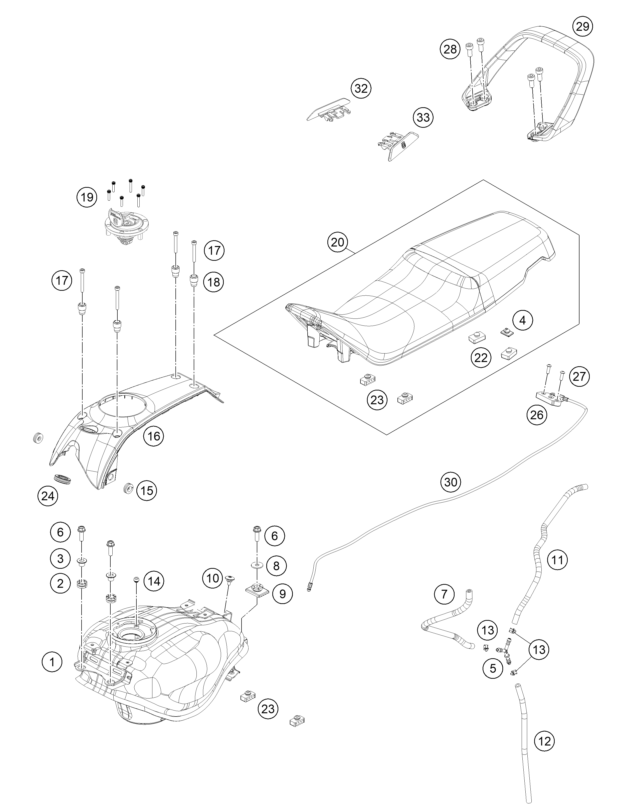

Nádrž, sedlo - zvětšit obrázek

Další schémata:

Nádrž, sedlo - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	28107013000Fuel tank	16 499 Kč	ks
2.	90507013006GROMMET TANK MOUNTING	68 Kč	ks
3.	93008034000Bushing	61 Kč	ks
4.	90507047041SEAT DUMPER SOZIUS SEAT	68 Kč	ks
5.	90507015000CONNECTOR Y SHAPE	71 Kč	ks
6.	J025080253Hexagon screw M8X25	71 Kč	ks
7.	J600000635500Pipe connector	387 Kč	ks
8.	90111060010WASHER PLAIN 8,4X25X2	58 Kč	ks
9.	93007014000Tank guard rear	77 Kč	ks
10.	J031050096Roundhead screw, M5x9	43 Kč	ks
11.	J600000638500Pipe tank expansion-connector	387 Kč	ks
12.	J600000629000Overflow hose, D=6 L=290	322 Kč	ks
13.	J310000801300Hose clamp 12.5 x 8 SW	65 Kč	ks
14.	28107029010Rubber cap, ACF tank connectio	83 Kč	ks
15.	28108057020Rubber bushing spoiler	74 Kč	ks
16.	28108057000BGHUSKVERNA COVER TOP-ADVENT.SIL	1 811 Kč	ks
17.	J900000602502Hexagon socket screw M6x25	43 Kč	ks
18.	28108057010Bushing ignition lock cover	147 Kč	ks
19.	J900000501600Set screw w.hexagon socket M5x	43 Kč	ks
20.	28607040000seat kpl.	4 334 Kč	ks
22.	93007047041Seat damper	68 Kč	ks
23.	93007040010Seat cowl pad	71 Kč	ks
24.	28111066010Rubber grommet, ignition lock	102 Kč	ks
26.	28107050000Seat lock	928 Kč	ks
27.	90508006003AH SCREW M6X1X20	53 Kč	ks
28.	J912080186Bolt socket-M8x1.25Xl18Xcl8.8X	71 Kč	ks
29.	28112008000Passenger grab handle	1 395 Kč	ks
30.	28107050010cable lock seat	323 Kč	ks
32.	28107055000Passenger seat cover right	464 Kč	ks
33.	28107055010Passenger seat cover left	464 Kč	ks
