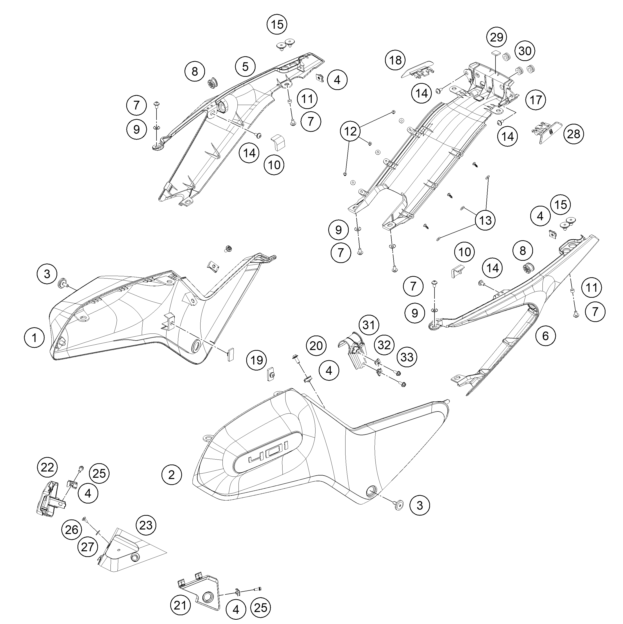

Podsedlový rám - zvětšit obrázek

Další schémata:

Podsedlový rám - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	28108051044KDAKT18 SIDE COVER RH DARK GALVAN	6 836 Kč	ks
2.	28108050044KDAKT18 SIDE COVER LH DARK GALVAN	6 836 Kč	ks
3.	J031060156Roundhead screw, M6x15	80 Kč	ks
4.	90105017000CLIP NUT M6	21 Kč	ks
5.	28108042000BHAKT18 SEAT COWL RH SILVER META	4 883 Kč	ks
6.	28108041000BHAKT18 SEAT COWL LH SILVER META	4 883 Kč	ks
7.	90508006001SOCKET HEAD BOLT M6X12	53 Kč	ks
8.	28108041010Compensating rubber, side fair	129 Kč	ks
9.	90108015020WASHER	49 Kč	ks
10.	28103083010Frame cover, rubber strap	132 Kč	ks
11.	90508016050SLEEVE UNDER TRAY	53 Kč	ks
12.	J981420136Roundhead screw, M4.2X13	31 Kč	ks
13.	J021040003WASHER 4,5X12X1MM	18 Kč	ks
14.	93008020060Screw M6X1X9	53 Kč	ks
15.	J900000801000Set screw w.hexagon socket M8x	71 Kč	ks
17.	28108019000Rear bottom part	2 174 Kč	ks
18.	28107055000Passenger seat cover right	464 Kč	ks
19.	90507047041SEAT DUMPER SOZIUS SEAT	68 Kč	ks
20.	J025060164bolt-flanged-small	43 Kč	ks
21.	28107052000Cover, seat lock	400 Kč	ks
22.	28142030000ABS modulator cover	464 Kč	ks
23.	28103093000Frame cover, front electrics	545 Kč	ks
25.	J025060124Hex collar screw, M6X12	43 Kč	ks
26.	J031060146Roundhead screw, M6x14	31 Kč	ks
27.	J125090001Washer, 9.5x13.5x1	22 Kč	ks
28.	28107055010Passenger seat cover left	464 Kč	ks
29.	J660001502500Metamol 25x15x3	19 Kč	ks
30.	93014017000Rubber bushing	64 Kč	ks
31.	28111038000Main wiring harness protection	182 Kč	ks
32.	90108050001CLIP NUT M5	49 Kč	ks
33.	J025050126HH-COLLAR SCREW M5X12	43 Kč	ks
