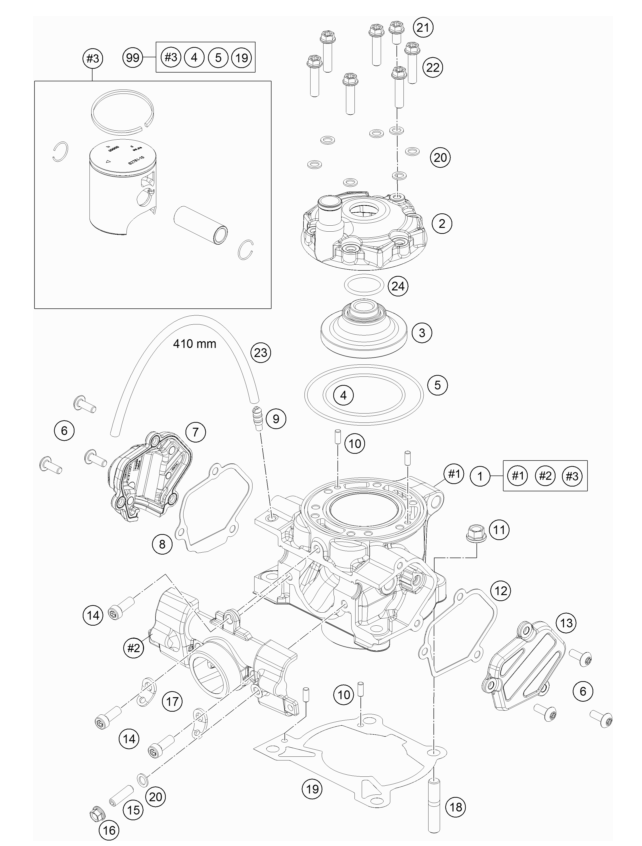

Válec, hlava válce - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	47230038000Cylinder + piston 85SX/TC85	18 344 Kč	ks
2.	47230006000Cylinder head	3 082 Kč	ks
3.	47230060100Combustion chamber inlay	1 039 Kč	ks
4.	0770540020O-RING 54X2 VITON	85 Kč	ks
5.	0770800021O-RING 80,00X2,00 VITON	85 Kč	ks
6.	58605083014SCREW M5X14 TORX 25 07	45 Kč	ks
7.	4723700700033Exhaust regulation cover rh	698 Kč	ks
8.	47237008000Exhaust ctrl cover gasket rhs	165 Kč	ks
9.	58336020090VACUUM CONNECTION M 6X1	157 Kč	ks
10.	0402040980NEEDLE ROL.DIN5402 NRB 4X9,8	39 Kč	ks
11.	46030045000flanged nut M8 WS10	85 Kč	ks
12.	47237006000Exhaust ctrl cover gasket lhs	165 Kč	ks
13.	4723700500033Exhaust regulation vover lh	698 Kč	ks
14.	014580060166SHCS ISO 14580 M6x16	34 Kč	ks
15.	0913060203THREAD PIN DIN0913-M 6X20	34 Kč	ks
16.	77336088106COLLAR NUT M6X1 SW8	67 Kč	ks
17.	51005074000RETAINING PLATE	65 Kč	ks
18.	0835080256STUD DIN0835-M 8X25 10.9	55 Kč	ks
19.	47230035020Cylinder gasket	190 Kč	ks
19.	47230035025Cylinder gasket	190 Kč	ks
19.	47230035040Cylinder gasket	190 Kč	ks
19.	47230035050Cylinder gasket	190 Kč	ks
19.	47230035075Cylinder gasket	190 Kč	ks
20.	0603061001CU-SEAL RING DIN7603-6X10X1	36 Kč	ks
21.	0025060106HH collar screw M6x10 TX30	49 Kč	ks
22.	0025060256HH collar screw M6x25 TX30	49 Kč	ks
23.	50335030001PVC-HOSE 6X9	185 Kč	ks
24.	07702300251O-RING 23,00X2,5 NBR 70 SH	34 Kč	ks
99.	00050000247PISTON KIT GR.I 85 SX/TC	3 504 Kč	ks
99.	00050000248PISTON KIT GR.II 85 SX/TC	3 504 Kč	ks
