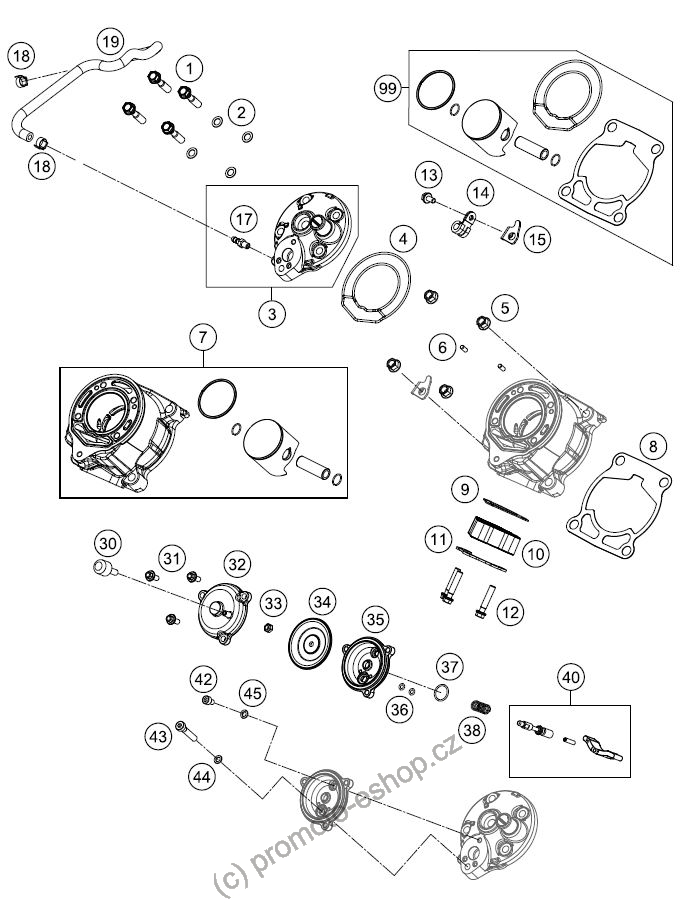

Válec, hlava válce - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	50330079000CYL. HEAD BOLT M 7X30 WS=10	71 Kč	ks
2.	0603070121CU-SEAL RING DIN7603- 7,3X12X1	36 Kč	ks
3.	46230006000CYLINDER HEAD	3 082 Kč	ks
4.	45230036000CYLINDER HEAD GASKET	190 Kč	ks
5.	46030045000flanged nut M8 WS10	85 Kč	ks
6.	402040980NEEDLE ROL.DIN5402 NRB 4X9,8	34 Kč	ks
7.	46230038000CYLINDER + PISTON	12 700 Kč	ks
8.	46230035020CYLINDER BASE GASKET 0,2 MM	190 Kč	ks
8.	46230035040CYLINDER BASE GASKET 0,4 MM	190 Kč	ks
8.	46230035050CYLINDER BASE GASKET 0,5 MM	190 Kč	ks
8.	46230035060CYLINDER BASE GASKET 0,6MM	190 Kč	ks
9.	46205004000EXHAUST PIPE FLANGE GASKET	179 Kč	ks
10.	46205003000EXHAUST FLANGE	578 Kč	ks
11.	46205003050BRACKET FOR SPRINGHOLDER	268 Kč	ks
12.	0025060306HH collar screw M6x30 TX30	49 Kč	ks
13.	0025050106HH collar screw M5x10 TX30	49 Kč	ks
14.	45001070000BRAKE CABLE CLAMP RSGU 9/12	91 Kč	ks
15.	46332060050RETAINING PLATE CLUTCHHOSE	169 Kč	ks
17.	58336020190VACUUM CONECTION M6/3MM 97	157 Kč	ks
18.	59007017000CLAMP YDNAC 10096F (9,6MM)	49 Kč	ks
19.	46337014000HOSE EXHAUST CONTROL	698 Kč	ks
30.	46237036044VENTILATION CPL.	279 Kč	ks
31.	0014050163HH COLLAR SCREW M 5X16 WS=6	49 Kč	ks
32.	46237035000CLOSING COVER	205 Kč	ks
33.	0985050003SELF LOCKING NUT DIN0985-M 5	34 Kč	ks
34.	46237013000MEMBRANE	698 Kč	ks
35.	46237011000FLANGE EXHAUST CONTROL	766 Kč	ks
36.	0770030015O-RING 31X1,5 NBR 70	34 Kč	ks
37.	0770150151O-RING 15,00X1,50 VITON	71 Kč	ks
38.	46237074100ADJ. SPRING - EXHAUST CONTROL	70 Kč	ks
40.	46337020033OUTLET VALVE CPL.	1 417 Kč	ks
42.	0912050083SHCS DIN 912 M5x8	34 Kč	ks
43.	0012060303AH SCREW DIN6912 M6X30 8.8	34 Kč	ks
44.	0603061001CU-SEAL RING DIN7603-6X10X1	36 Kč	ks
45.	0603050901COPPERT GASKET 5X9X1	36 Kč	ks
99.	00050000202PISTON KIT GR.I 65 SX 09-14	2 289 Kč	ks
99.	00050000203PISTON KIT GR.II 65 SX 09-14	2 309 Kč	ks
