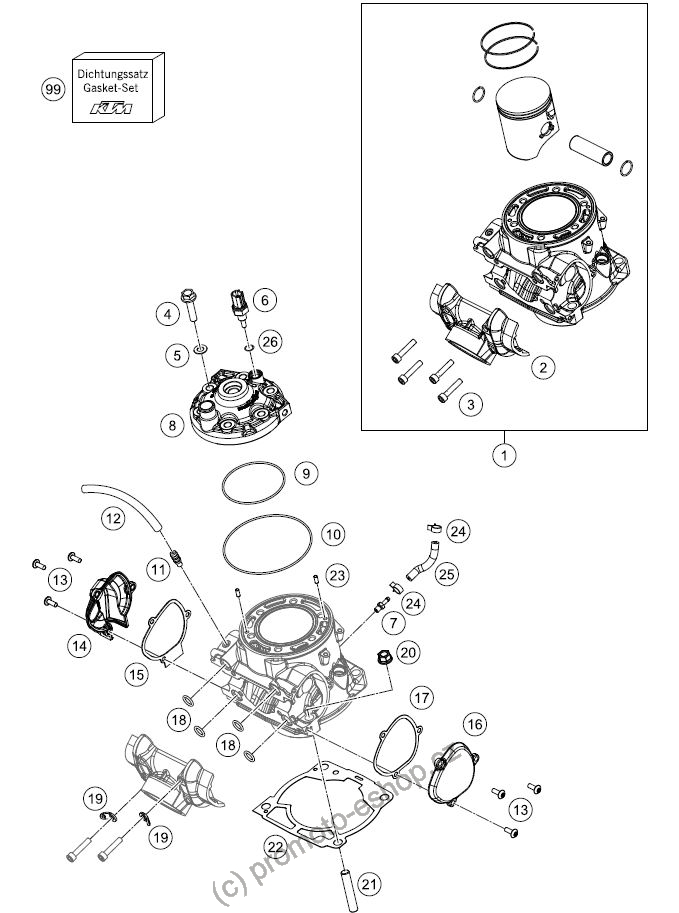

Válec, hlava válce - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	55430038100Cylinder + piston cpl. 18	22 275 Kč	ks
2.	55437001000Connection Flange	6 577 Kč	ks
3.	0912060353AH SCREW DIN0912-M 6X35	34 Kč	ks
4.	54830079000COLLAR SCREW M 8X35 WS=13	85 Kč	ks
5.	56530080000CU-SEAL RING 8 X 16 X 1	45 Kč	ks
6.	79435047000water temperature sensor	800 Kč	ks
7.	55430023000Vacuum connection	157 Kč	ks
8.	55430106000ZYLINDERKOPF 250 EXC	4 103 Kč	ks
9.	0770730020O-RING 73,00X2,00 VITON	85 Kč	ks
10.	0770105020O-RING 105,00X2,00 07	98 Kč	ks
11.	58336020090VACUUM CONNECTION M 6X1	157 Kč	ks
12.	78015019001HOSE EPA D=6/10 PER METER	961 Kč	ks
13.	58605083014SCREW M5X14 TORX 25 07	45 Kč	ks
14.	5483700700015CONTROL COVER R/S 09	379 Kč	ks
15.	55537008000GASKET FOR CONTROL COVER R/S	199 Kč	ks
16.	5483700500015CONTROL COVER L/S 09	848 Kč	ks
17.	55537006000GASKET FOR CONTROL COVER L/S	199 Kč	ks
18.	0770116241O-RING 11,3 X2,4 SILICON	34 Kč	ks
19.	51005074000RETAINING PLATE	65 Kč	ks
20.	54630044000COLLAR NUT M10 WS=13	85 Kč	ks
21.	0835100351SSTUD SCREW DIN0835-M10X35	85 Kč	ks
22.	55430030025CYLINDER BASE GASKET	231 Kč	ks
22.	55430030020CYLINDER BASE GASKET	231 Kč	ks
22.	55430030040CYLINDER BASE GASKET	231 Kč	ks
22.	55430030050CYLINDER BASE GASKET	231 Kč	ks
22.	55430030075CYLINDER FOOT GASKET	231 Kč	ks
23.	0402040980NEEDLE ROL.DIN5402 NRB 4X9,8	39 Kč	ks
24.	59007017000CLAMP YDNAC 10096F (9,6MM)	49 Kč	ks
25.	61041095075tube 3,2x9.0 L=75mm	96 Kč	ks
26.	0770100020o-ring 10.00x2.00 silicone	34 Kč	ks
99.	55430097000Gasket set piston 250/300	1 138 Kč	ks
