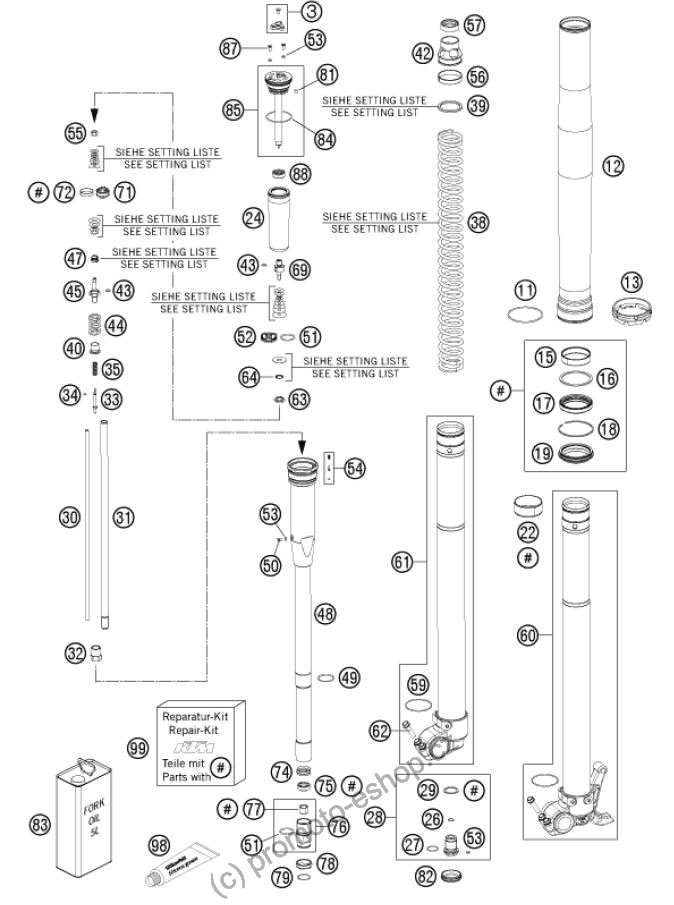

Přední tlumiče rozložené - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
3.	48601117SADJUSTING KNOB + SCREW	125 Kč	ks
11.	48600016GUIDING RING D=58MM	91 Kč	ks
12.	48600736OUTER TUBE L577 D54/60MM 2L	7 746 Kč	ks
13.	48600698FORK PROTECTION RING 08	222 Kč	ks
15.	48601009GUIDING BUSH 48X52X12 R11	262 Kč	ks
16.	48600013SUPPORT RING 50 X 57,6 X 1,5	116 Kč	ks
17.	48601179OIL SEALRING D48X57,9X11,4 RED	348 Kč	ks
18.	48600070LOCK WASHER SB58	91 Kč	ks
19.	48601178DUST SEAL DL48X58,4X5,7 RED	424 Kč	ks
22.	48601008GUIDING BUSH 47X49X20 R11	262 Kč	ks
24.	48600281MEMBRANE	817 Kč	ks
26.	48600301O-RING NBR 9,5X1,5	33 Kč	ks
27.	46810811O-RING NBR 17X2 PA	33 Kč	ks
28.	48600280S% SCREW BUSH M20X1 L=33 CPL.	817 Kč	ks
29.	48600275COPPER WASHER 20,5X26X1	40 Kč	ks
30.	48600726ADJUSTING TUBE L351	568 Kč	ks
31.	48600723PISTON ROD D=12 M9X1 L=385	2 296 Kč	ks
32.	48600459COUNTERNUT M12X1 WS17	181 Kč	ks
33.	48600277ADJUSTER NEEDLE 07	213 Kč	ks
34.	48600298O-RING 2X1,5 NBR	33 Kč	ks
35.	48600444REBOUND SPRING C=4N/MM	111 Kč	ks
38.	91410105SSPRING 5,0N/MM SET D=4,9MM	2 721 Kč	ks
39.	48600456SPACER 43X35X2,5	111 Kč	ks
39.	48600457SPACER 43X35X5	111 Kč	ks
39.	48600458SPACER 43X35X1,5	111 Kč	ks
40.	48600525GUIDING BUSH REBOUND SPRING	213 Kč	ks
42.	48600520SPRING SUPPORT	694 Kč	ks
43.	48600299O-RING 6X1,2 NBR	33 Kč	ks
44.	48600578SPRING REB. L=32 C=37 DI=13,9	307 Kč	ks
45.	48600576PISTON ROD REBOUND	307 Kč	ks
47.	48600382SHUTTLE VALVE SPRING C=0,4	111 Kč	ks
47.	35480377SPRING CHECK VALVE D=0,5	111 Kč	ks
48.	48600519S3MEMBRANE HOLDER INKL. PIN SET	6 077 Kč	ks
49.	48600512LOCK WASHER D=25,5	77 Kč	ks
50.	48600542AH SCREW M4X6	65 Kč	ks
51.	46811499O-RING NBR 21X2	40 Kč	ks
52.	48600047PISTON COMPRESSION D=27,9	568 Kč	ks
53.	50180222O-RING NBR 4X1,5	33 Kč	ks
54.	48600977SPIN KIT	307 Kč	ks
55.	40540486NUT M6X0,5 REBOUND	111 Kč	ks
56.	48600744GUIDE RING 44 X39	182 Kč	ks
57.	48600577RING SPRING-SUPPORT	222 Kč	ks
59.	48600048O-RING NBR 46 X 2	46 Kč	ks
60.	48600865S2AXLE CLAMP	9 424 Kč	ks
61.	48600864S1FORK AX.PASS + TUBE CPL.	9 424 Kč	ks
62.	25080256HH COLLAR SCREW M8X25 TX40	72 Kč	ks
63.	48600163CHECK VALVE NUT M6X0,5 D=2	111 Kč	ks
64.	48600202SPRING CHECK VALVE D=0,7	111 Kč	ks
69.	48600509PISTON ROD COMPRESSION	307 Kč	ks
71.	48600575PISTON REBOUND SX 2007	568 Kč	ks
72.	48600455PISTON RING 5X1X68	314 Kč	ks
74.	48601056RING 23,45X8,9	213 Kč	ks
75.	48600829SHAFT SEAL RING 12MM	144 Kč	ks
76.	48601055SSCREW SLEEVE M24,5X1 CPL.	1 419 Kč	ks
77.	48600430DU BUSH FOR PISTON ROD	182 Kč	ks
78.	48600709CHECK VALVE STOP	375 Kč	ks
79.	48600446LOCK WASHER D=20	77 Kč	ks
81.	15080017SILICON CAP	65 Kč	ks
82.	48600692RUBBER CAP D=26,4	82 Kč	ks
83.	48601166S1FORK OIL SAE4 5L	2 732 Kč	ks
84.	40140024O-RING NBR 43X2	46 Kč	ks
85.	48600516E1SCREW CAP L=125	2 332 Kč	ks
87.	48600526SCREW M4X10	65 Kč	ks
88.	48600514MEMBRANE SLEEVE	637 Kč	ks
98.	T511SILICONE GREASE F. DUST STRI	989 Kč	ks
99.	R14053REPAIR KIT FORK	2 083 Kč	ks
