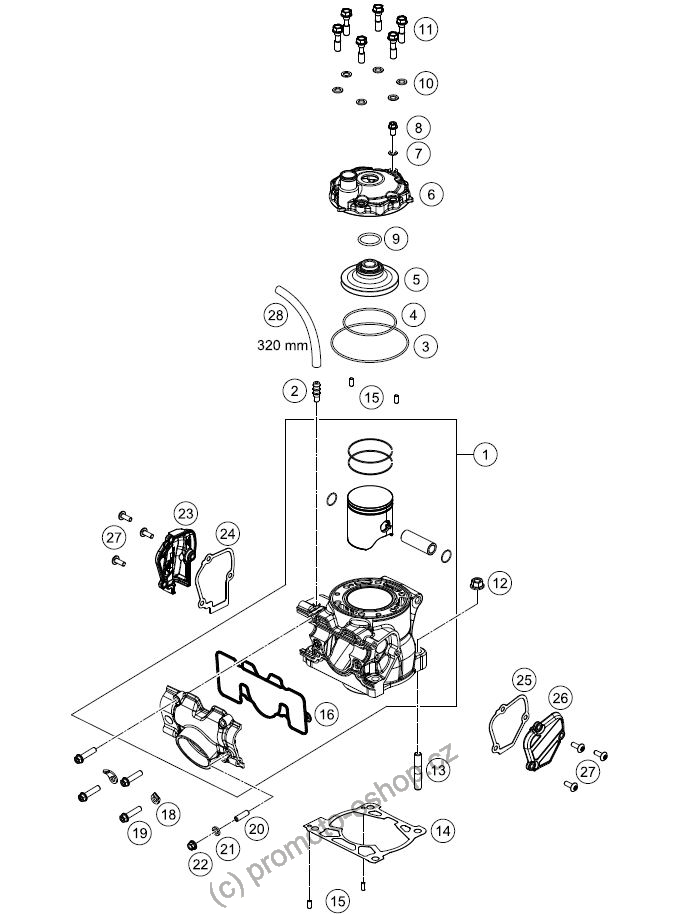

Válec, Hlava válce - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	50430038000CYLINDER + PISTON CPL. 125	17 686 Kč	ks
2.	58336020090VACUUM CONNECTION M 6X1	157 Kč	ks
3.	0770890200O-RING 89X2 NBR 70 SH	42 Kč	ks
4.	0770600200O-RING 60X2 FPM 75SH	85 Kč	ks
5.	50430060000COMBUSTION CHAMBER INLAY	753 Kč	ks
6.	50430006000CYLINDER HEAD	1 509 Kč	ks
7.	0603061001CU-SEAL RING DIN7603-6X10X1	36 Kč	ks
8.	0025060106HH COLLAR SCREW M6X10 TX30	49 Kč	ks
9.	07702300251O-RING 23,00X2,5 NBR 70 SH	34 Kč	ks
10.	0603070121CU-SEAL RING DIN7603- 7,3X12X1	36 Kč	ks
11.	50430079000CYLINDER HEAD SCREW	85 Kč	ks
12.	50330045000HH COLLAR NUT M 8 WS=12	46 Kč	ks
13.	0835080326STUD DIN 835 M8X32	55 Kč	ks
14.	50430035015CYLINDER BASE GASKET 0.15MM	231 Kč	ks
14.	50430035020CYLINDER BASE GASKET 0.20MM	231 Kč	ks
14.	50430035025CYLINDER BASE GASKET 0.25MM	231 Kč	ks
14.	50430035040CYLINDER BASE GASKET 0.40MM	231 Kč	ks
14.	50430035050CYLINDER BASE GASKET 0.50MM	231 Kč	ks
14.	50430035075CYLINDER BASE GASKET 0.75MM	231 Kč	ks
15.	0402040980NEEDLE ROL.DIN5402 NRB 4X9,8	39 Kč	ks
16.	50437046000GASKET CONNECTION FLANGE	246 Kč	ks
18.	51005074000RETAINING PLATE	65 Kč	ks
19.	0025060256HH COLLAR SCREW M6X25 TX30	49 Kč	ks
20.	0913060203THREAD PIN DIN0913-M 6X20	34 Kč	ks
21.	0603061001CU-SEAL RING DIN7603-6X10X1	36 Kč	ks
22.	77336088106COLLAR NUT M6X1 SW8	67 Kč	ks
23.	5043700700033EXHAUST CONTROL COVER R/S	848 Kč	ks
24.	50437008000GASKET EXH. CONTROL COVER R/S	116 Kč	ks
25.	50437006000GASKET EXH. CONTROL COVER L/S	116 Kč	ks
26.	5043700500033EXHAUST CONTROL COVER L/S	848 Kč	ks
27.	58605083014SCREW M5X14 TORX 25 07	45 Kč	ks
28.	50335030001PVC-HOSE 6X9	185 Kč	ks
