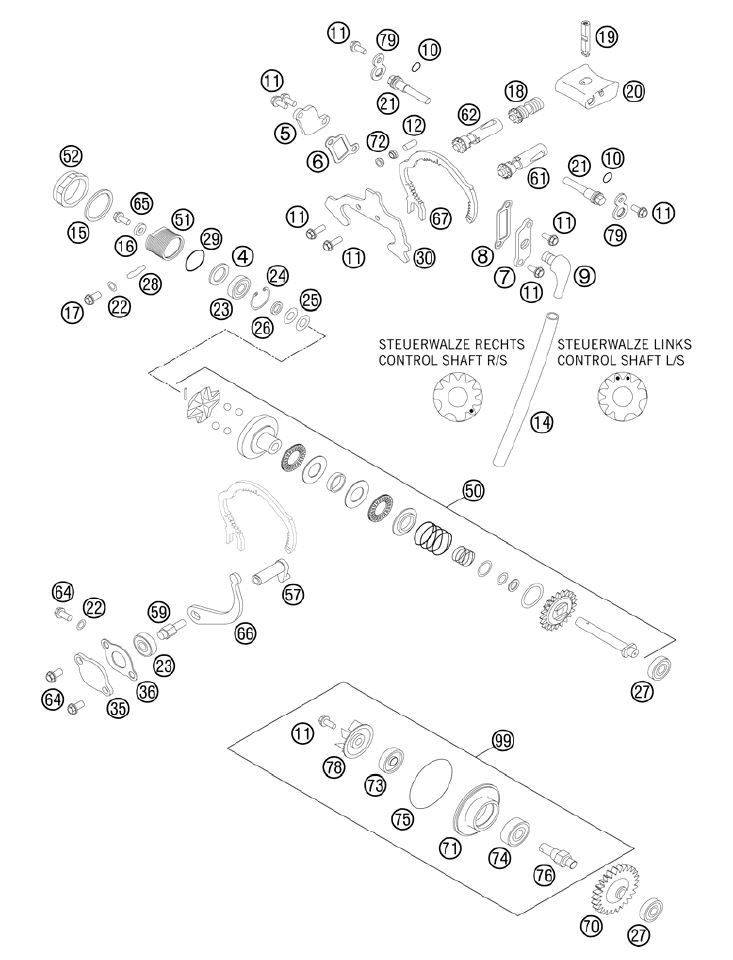

Výfukový systém - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
4.	49033031015STOP DISK 14,2X22X1,5	69 Kč	ks
5.	50337005100SIDE COVER R/S 2007	225 Kč	ks
6.	50337006100GASKET SIDE COVER R/S 07	92 Kč	ks
7.	50337007200SIDE COVER LEFT 2007	225 Kč	ks
8.	50337008100GASKET SIDE COVER L/S 07	92 Kč	ks
9.	50330022000ANGLE PIEC 90 DEGREE M10X1 02	40 Kč	ks
10.	0770008020O-RING 8,00X2,00 NBR	29 Kč	ks
11.	0014050123HH COLLAR SCREW M 5X12 WS=6	43 Kč	ks
12.	0402051600NEEDLE ROL. DIN5402 NRB 5X15,8	38 Kč	ks
14.	50332095200TUBE RUBBER 6X9 DVOH 200MM	160 Kč	ks
15.	0603262322CU-SEAL RING DIN7603-26X32X2	38 Kč	ks
16.	50337050064WASHER 5,2 X 12 X 3	77 Kč	ks
17.	0025060106HH COLLAR SCREW M6X10 TX30	43 Kč	ks
18.	50337018144ECCENTRIC FOR CRANKBOLT 125 09	929 Kč	ks
19.	50337019000CRANK BOLT F.CONTROL FL.12598	397 Kč	ks
20.	50337020544CONTROL FLAP 125 CPL.	1 799 Kč	ks
21.	50337021100AXLE FOR CONTRIL FLAP 2007	781 Kč	ks
22.	0603061001CU-SEAL RING DIN7603-6X10X1	32 Kč	ks
23.	0625006087GROOVED BALL BEAR. 608 2RS C3	170 Kč	ks
24.	0472022100CIRCLIP DIN0472-22X1	29 Kč	ks
25.	0093821606WASHER DIN2093-8,2X16X0,6	22 Kč	ks
26.	50337050063SPACER BUSHING 8X12X2,3	87 Kč	ks
27.	0625006082BALL BEARING 608 RS C3	170 Kč	ks
28.	00099300011O-RINGSTRING 4MM NBR 70 PER/M	77 Kč	ks
29.	0770160030O-RING 16,00X3,00 NBR 70	29 Kč	ks
30.	50337030000SHEET METAL GUIDE 3MM 12598	268 Kč	ks
35.	50337035000CLOSING COVER 98	225 Kč	ks
36.	50337035050CLOSING COVER GASKET 1MM	87 Kč	ks
50.	50337050044CENTRIFUGAL TIMER CPL. 12598	4 970 Kč	ks
51.	50337050062BUSHING HOLDER M 26X1 98	311 Kč	ks
52.	50337050061CLOSING NUT M 26X1 WS=30	225 Kč	ks
57.	50337057000CONTROL LEVER 125/20098	806 Kč	ks
59.	50337059000CONTROL SHAFT M 6 WS=10 98	155 Kč	ks
61.	50337061144CONTROL SHAFT CPL.L/S 125 2001	1 085 Kč	ks
62.	50337062144CONTROL SHAFT CPL.R/S 125 2001	1 085 Kč	ks
64.	0025060126HH COLLAR SCREW M6X12 TX30	43 Kč	ks
65.	0025050126HH COLLAR SCREW M5X12 TX30	43 Kč	ks
66.	50337066000LEVER F. CONTROL SEGMENT 98	311 Kč	ks
67.	50337067000CONTROL SHAFT SEGMENT 12598	781 Kč	ks
70.	50335054026DRIVE WHEEL 26-T 125/20098	441 Kč	ks
71.	50335056000BUSHING SUPPORT WATER PUMP 98	388 Kč	ks
72.	50337072000ROLLER GUIDE 5X6,1X8X4 98	99 Kč	ks
73.	0760082472SHAFT SEAL RING 8X24X7 A DUO	108 Kč	ks
74.	0625060001BALL BEARING 6000/C3	170 Kč	ks
75.	0770049025O-RING 49,00X2,50 NBR	37 Kč	ks
76.	50335054150WATER PUMP SHAFT	348 Kč	ks
78.	54835005000WATER PUMP WHEEL 07	204 Kč	ks
79.	50337079000LOCK METAL SHEET 2MM 98	155 Kč	ks
99.	54835055115WATER PUMP REP. KIT SX 11-13	1 538 Kč	ks
