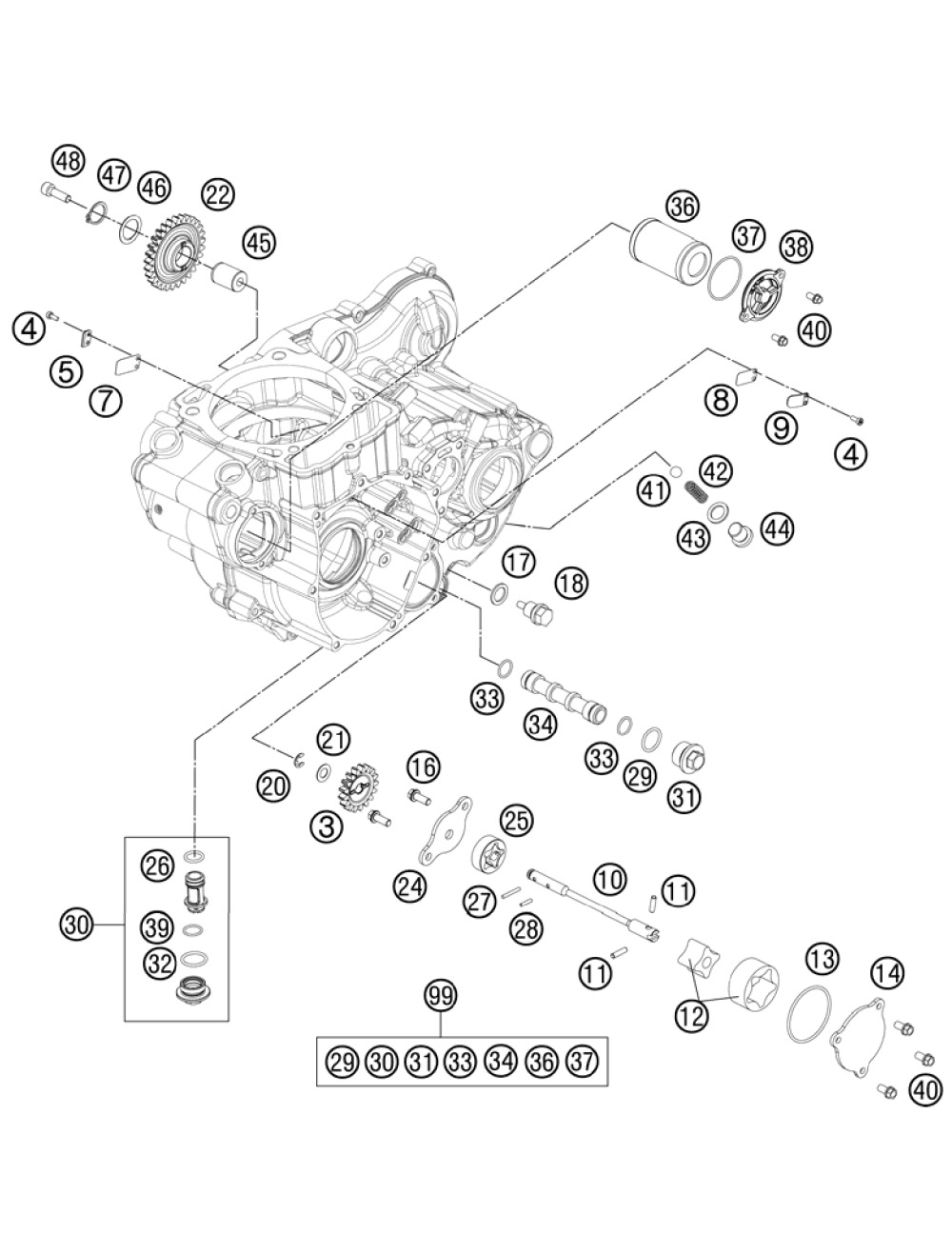

Mazací soustava - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
3.	78038001017OIL PUMP GEAR 17 T	550 Kč	ks
4.	0458030080CYLIND.SCREW M3X8 ISO 14580 SS	34 Kč	ks
5.	75030003050STOP SHEET MEMBRANE 07	208 Kč	ks
7.	75030003051MEMBRANE 07	91 Kč	ks
8.	81205027003MEMBRAN CRANKCASE	73 Kč	ks
9.	81205027004TAB WASHER MEMBRAN CSC	87 Kč	ks
10.	78138102000OIL PUMP SHAFT SP-DP	759 Kč	ks
11.	0402041580NEEDLE ROLLER NRB 4X15,8 G2	39 Kč	ks
12.	61238111000ROTOR-SET CPL. 22MM	1 343 Kč	ks
13.	0770440020O-RING 44,00X2,00 VITON	85 Kč	ks
14.	78038004000OIL PUMP COVER SUCTION PUMP	569 Kč	ks
16.	0025060166HH COLLAR SCREW M6X16 TX30	49 Kč	ks
17.	58038022000CU-SEAL RING DIN7603-12X18X1,5	50 Kč	ks
18.	58030021000OILDRAIN PLUG W.MAG. M 12X1,5	181 Kč	ks
20.	0799060000TAB WASHER DIN6799-RS 6,0	25 Kč	ks
21.	58038007755STOP DISK 8,1 X 15 X 0,5	61 Kč	ks
22.	78138001029IDLER GEAR 1 29Z	654 Kč	ks
24.	78138003000OIL PUMP COVER	465 Kč	ks
25.	59038011012OILPUMP ROTOR 12MM G-95R/003	962 Kč	ks
26.	0770012021O-RING 12X2 VITON GREEN	71 Kč	ks
27.	0402040980NEEDLE ROL.DIN5402 NRB 4X9,8	39 Kč	ks
28.	0402251180NEEDLE ROLLER DIN5402 2,5X11,8	39 Kč	ks
29.	0770020170O-RING 17,17X1,78 GLO	34 Kč	ks
30.	78138015001OIL SCREEN CPL.	424 Kč	ks
31.	59038017000PLUG M20X1,5 WS=13	233 Kč	ks
32.	0770170200O-RING 17,00X2,00	34 Kč	ks
33.	07701250151O-RING 12,5X1,5 VITON V75	71 Kč	ks
34.	59038016100OIL SCREEN	291 Kč	ks
36.	77038005044OIL FILTER WITH GASKET 06	197 Kč	ks
37.	07700390261O-RING 39,34X2,62	42 Kč	ks
38.	75038041200OILFILTER CAP	608 Kč	ks
39.	0770125015O-RING 12,5X1,5 NBR	34 Kč	ks
40.	0025050166HH COLLAR SCREW M5X16 TX30	49 Kč	ks
41.	0401090003BALL DIN5401-9	25 Kč	ks
42.	58038023300PRESSURE SPRING L=25MM D=1MM	157 Kč	ks
43.	58038022000CU-SEAL RING DIN7603-12X18X1,5	50 Kč	ks
44.	0908120153PLUG DIN0908-M12X1,5	85 Kč	ks
45.	78040028000BUSHING PIN	271 Kč	ks
46.	0988172405SHIM WASHER DIN0988-17X24X0,5	25 Kč	ks
47.	0471170010CIRCLIP DIN0471-17X1	33 Kč	ks
48.	0912060208AH SCREW DIN0912-M 6X20 SS	34 Kč	ks
99.	78938015010OILFILTER SERVICE KIT SX-F 13	1 127 Kč	ks
