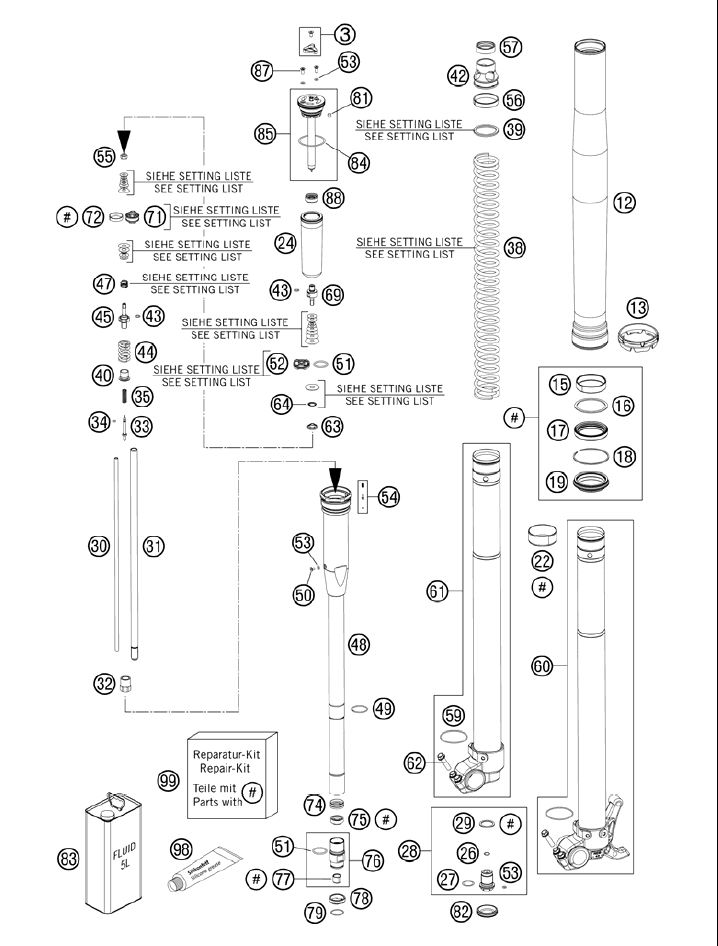

Přední vidlice v rozloženém stavu - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
3.	48600811SADJUSTING KNOB + SCREW	115 Kč	ks
12.	48600736OUTER TUBE L577 D54/60MM 2L	7 272 Kč	ks
13.	48600698FORK PROTECTION RING 08	209 Kč	ks
15.	48601009GUIDING BUSH 48X52X12 R11	246 Kč	ks
16.	48600013SUPPORT RING 50 X 57,6 X 1,5	133 Kč	ks
17.	48600969OIL SEAL RING D45 SKF	311 Kč	ks
18.	48600070LOCK WASHER SB58	83 Kč	ks
19.	48600968DUST SEAL DL D48 SKF	304 Kč	ks
22.	48601008GUIDING BUSH 47X49X20 R11	246 Kč	ks
24.	48600281MEMBRANE	772 Kč	ks
26.	48600301O-RING NBR 9,5X1,5	29 Kč	ks
27.	46810811O-RING NBR 17X2 PA	29 Kč	ks
28.	48600280SSCREW BUSH M20X1 L=33 CPL.	772 Kč	ks
29.	48600275COPPER WASHER 20,5X26X1	37 Kč	ks
30.	48600269ADJUSTING TUBE L=371	533 Kč	ks
31.	48600464PISTON ROD SXS 2005	1 580 Kč	ks
32.	48600459COUNTERNUT M12X1 WS17	209 Kč	ks
33.	48600887REBOUND NEEDLE SX	246 Kč	ks
34.	48600298O-RING 2X1,5 NBR	29 Kč	ks
35.	48600444REBOUND SPRING C=4N/MM	100 Kč	ks
38.	91410059SSPRING 4,0 N/MM SET	2 721 Kč	ks
38.	91410060SSPRING 4,2 N/MM SET D=5,0MM	2 721 Kč	ks
39.	48600456SPACER 43X35X2,5	100 Kč	ks
39.	48600457SPACER 43X35X5	100 Kč	ks
39.	48600458SPACER 43X35X1,5	100 Kč	ks
40.	48600525GUIDING BUSH REBOUND SPRING	246 Kč	ks
42.	48600520SPRING SUPPORT	652 Kč	ks
43.	48600299O-RING 6X1,2 NBR	29 Kč	ks
44.	48600578SPRING REB. L=32 C=37 DI=13,9	284 Kč	ks
45.	48600576PISTON ROD REBOUND	284 Kč	ks
47.	48600382SHUTTLE VALVE SPRING C=0,4	100 Kč	ks
48.	48600519S3MEMBRANE HOLDER INKL. PIN SET	6 077 Kč	ks
49.	48600512LOCK WASHER D=25,5	69 Kč	ks
50.	48600542AH SCREW M4X6	59 Kč	ks
51.	46811499O-RING NBR 21X2	37 Kč	ks
52.	48600047PISTON COMPRESSION D=27,9	533 Kč	ks
53.	50180222O-RING NBR 4X1,5	29 Kč	ks
54.	48600977SPIN KIT	284 Kč	ks
55.	40540486NUT M6X0,5 REBOUND	100 Kč	ks
56.	48600744GUIDE RING 44 X39	170 Kč	ks
57.	48600577RING SPRING-SUPPORT	209 Kč	ks
59.	48600113WASHER 32X42X2,5	118 Kč	ks
60.	48600863SAAXLE CLAMP LEFT + TUBE CPL.	8 869 Kč	ks
61.	48600864SAAXLE CLAMP RIGHT + TUBE CPL.	8 869 Kč	ks
62.	25080256HH COLLAR SCREW M8X25 TX40	72 Kč	ks
63.	48600885NUT VALVE M6X0,5 LH=1,2	100 Kč	ks
64.	48600202SPRING CHECK VALVE D=0,7	100 Kč	ks
69.	48600509PISTON ROD COMPRESSION	284 Kč	ks
71.	48600575PISTON REBOUND SX 2007	533 Kč	ks
72.	48600455PISTON RING 5X1X68	314 Kč	ks
74.	48601056RING 23,45X8,9	246 Kč	ks
75.	48600829SHAFT SEAL RING 12MM	132 Kč	ks
76.	48601055SSCREW SLEEVE M24,5X1 CPL.	1 316 Kč	ks
77.	48600430DU BUSH FOR PISTON ROD	170 Kč	ks
78.	48600709CHECK VALVE STOP	346 Kč	ks
79.	48600446LOCK WASHER D=20	69 Kč	ks
81.	15080017SILICON CAP	59 Kč	ks
82.	48600692RUBBER CAP D=26,4	69 Kč	ks
83.	48600765S1FORK OIL SAE5 5L 2008	2 591 Kč	ks
84.	40140024O-RING NBR 43X2	43 Kč	ks
85.	48600516S1SCREW CAP CPL. L=125	2 015 Kč	ks
87.	48600526SCREW M4X10	59 Kč	ks
88.	48600514MEMBRANE SLEEVE	246 Kč	ks
98.	T511SILICONE GREASE F. DUST STRI	988 Kč	ks
99.	R14020SXS SERVICE KIT	3 378 Kč	ks
