Zadní tlumič v rozloženém stavu - zvětšit obrázek

Další schémata:

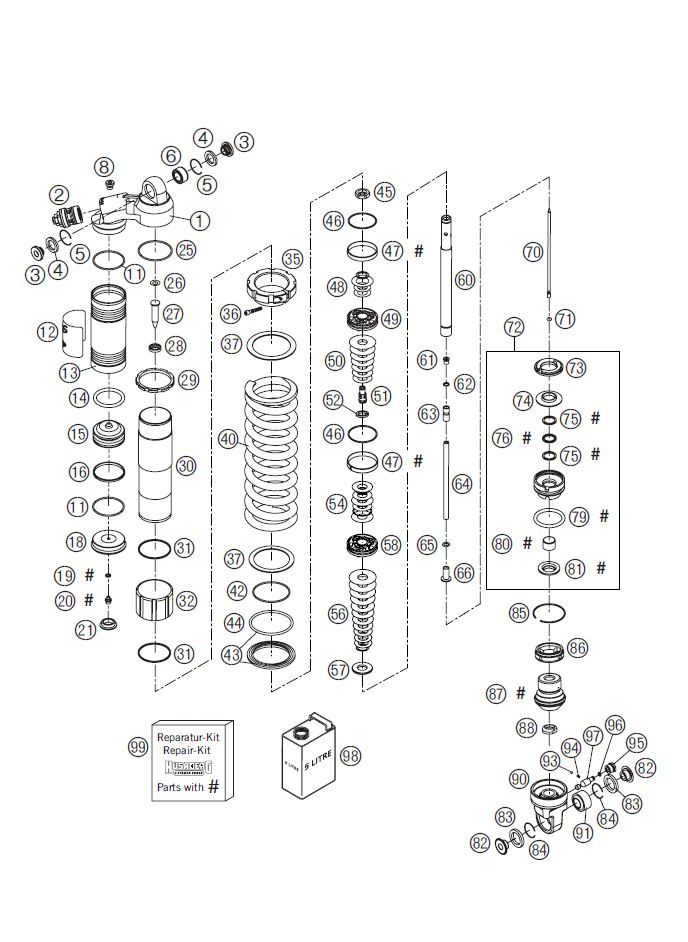

Zadní tlumič v rozloženém stavu - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	50180357SHOCK ABS.CASE 30,5 B21 82GR03	6 137 Kč	ks
2.	50180213S6DCC-COMPR.DAMP.CONTROL CPL. 04	2 960 Kč	ks
3.	46180061ADAPTOR-BUSH 12X26	181 Kč	ks
4.	46180003OIL SEAL KGW D=25	117 Kč	ks
5.	50180168WASHER KGW D=25	76 Kč	ks
6.	50180005BUSHING KGW 1525 HD	627 Kč	ks
8.	50180095BLEED PLUG R 1/8	123 Kč	ks
11.	46810340O-RING NBR 45X2	46 Kč	ks
12.	52000041WP CAUTION (PDS KTM) 58X83	55 Kč	ks
13.	50180096SRESERVOIR SCREW L140 d46	3 128 Kč	ks
14.	46811043O-RING VITON 35X5	83 Kč	ks
15.	50180108SEPARATION PISTON D=46, H=29	541 Kč	ks
16.	46810324PISTON RING 3,9X1,5X138	504 Kč	ks
18.	46811209RESERVOIR CAP D=46	545 Kč	ks
19.	46810893O-RING NBR 5,28X1,78	28 Kč	ks
20.	36120151SCREW PLUG M5X6	91 Kč	ks
21.	46811208RUBBER CAP "DO NOT OPEN"	117 Kč	ks
25.	50180097O-RING 52X2	46 Kč	ks
26.	50180177WASHER 16X8,2X0,6	43 Kč	ks
27.	50180488% NEEDLE D=11,4 D=6, L=57	150 Kč	ks
28.	50180437% SCREW CAP M20X1 D=11,5 H=5	328 Kč	ks
29.	50180270LOCK WASHER	439 Kč	ks
30.	50180442TUBE L=195 PDS	2 419 Kč	ks
31.	50180133CIRCLIP 50X1,5	123 Kč	ks
32.	50180081SPRING GUIDANCE L=40	454 Kč	ks
35.	50180433SPRING RETAINER M56X1	1 104 Kč	ks
36.	0912050303AH SCREW DIN0912-M 5X30	34 Kč	ks
37.	50180114INTERM.RING SCREW SPRING RET.	202 Kč	ks
40.	91210003SPRING 250 76N/MM D=12,5 (59)	4 290 Kč	ks
40.	91210004SPRING 250 80N/MM D=12,5 (62)	3 175 Kč	ks
40.	91210005SPRING 250 84N/MM D=13,0 (62)	3 175 Kč	ks
42.	50180273CIRCLIP 58,2X2	123 Kč	ks
43.	50180463SSPRING RET. D=80 W. O-RING 05	673 Kč	ks
44.	50180352O-RING VITON 66,27X3,53	105 Kč	ks
45.	50180141PISTON ROD NUT M16X1	302 Kč	ks
46.	50180099O-RING VITON 44,17X1,78	105 Kč	ks
47.	50180135PISTON RING 50-8	428 Kč	ks
48.	50180210WASHER 16X21X1	50 Kč	ks
49.	50180311PISTON 6+6X7/4,5 VB 1,0	984 Kč	ks
50.	50180065SHIM 16X32X0,25	58 Kč	ks
50.	50180078SHIM 16X40X0,30	65 Kč	ks
51.	50180485HOLDER D=16 M16X1 L=48	971 Kč	ks
52.	50180499BACKPLATE D=23 D=16 H3	596 Kč	ks
54.	50180034BACKPLATE 16X20X0,30	50 Kč	ks
54.	50180045SHIM 16X28X0,15	50 Kč	ks
54.	50180067SHIM 16X36X0,25	58 Kč	ks
56.	50180054SHIM 16X28X0,20	50 Kč	ks
56.	50180055SHIM 16X30X0,20	58 Kč	ks
56.	50180056SHIM 16X32X0,20	58 Kč	ks
56.	50180057SHIM 16X34X0,20	58 Kč	ks
56.	50180058SHIM 16X36X0,20	58 Kč	ks
56.	50180060SHIM 16X40X0,20	65 Kč	ks
56.	50180061SHIM 16X42X0,20	65 Kč	ks
56.	50180068SHIM 16X38X0,25	58 Kč	ks
56.	50180071SHIM 16X44X0,25	65 Kč	ks
57.	50180233REBOUND DISC D=34, H=2	378 Kč	ks
58.	50180446PISTON 6+6X3,5/4,5	832 Kč	ks
60.	50180486PISTON ROD D=18 L=146 M16X1	2 369 Kč	ks
61.	50180200BUSH M8X1	216 Kč	ks
62.	50180157O-RING VITON 7X1,5	77 Kč	ks
63.	50180439NEEDLE SEAT M8X1 D=5,5 05	255 Kč	ks
64.	50180489TUBE M8X1 L=145,4	632 Kč	ks
65.	48600049O-RING NBR 8X2	33 Kč	ks
66.	50180279TUBE ADAPTOR M8X1 L=23	262 Kč	ks
70.	50180490NEEDLE L=169	150 Kč	ks
71.	46811265O-RING VITON 2,2X1,6	77 Kč	ks
72.	50180435SADAPTOR CPL. D=50 H=29	2 145 Kč	ks
73.	50180107REBOUND RUBBER	144 Kč	ks
74.	50180113STEEL DISC 18X,5X43,7X6	222 Kč	ks
75.	50180102BACKUPRING 22,55X1,5	182 Kč	ks
76.	50180101QUAD RING 18X2,62	139 Kč	ks
79.	50180103O-RING 41X5	46 Kč	ks
80.	46180119DU-BUSH 18X20X12	182 Kč	ks
81.	50180082DUST SEAL 1835	182 Kč	ks
82.	50180153ADAPTOR-BUSH KGW 32X10X26	213 Kč	ks
83.	50180159SHAFT SEAL RING KGW D=32	117 Kč	ks
84.	50180175CIRCLIP KGW D=32	104 Kč	ks
85.	50180126CIRCLIP 53X1,75	123 Kč	ks
86.	50180487COVER D=50	673 Kč	ks
87.	50180480BUMP RUBBER D58 D17 H59 SXS 05	551 Kč	ks
88.	50180481NUT M18X1	302 Kč	ks
90.	50180497SSHOCK ABS. BOTTOM 54X20X32	5 216 Kč	ks
91.	50180179PIVOT BEARING KGW 1632	676 Kč	ks
92.	50180297RUBBER PLUG D=8	59 Kč	ks
93.	40540603STEEL BALL D=3MM	65 Kč	ks
94.	48600028SPRING D=2,9 L=7,9	107 Kč	ks
95.	50180281RESERVOIR CAP M14X1	262 Kč	ks
96.	50180222O-RING NBR 4X1,5	33 Kč	ks
97.	50180434ADJUSTING SCREW 80 DEG. L=39	257 Kč	ks
98.	50180466S1% SHOCK ABSORBER FLUID 5 LT 05	2 612 Kč	ks
99.	R12011REPAIR KIT GASKET 5018 PDS 06	2 117 Kč	ks
