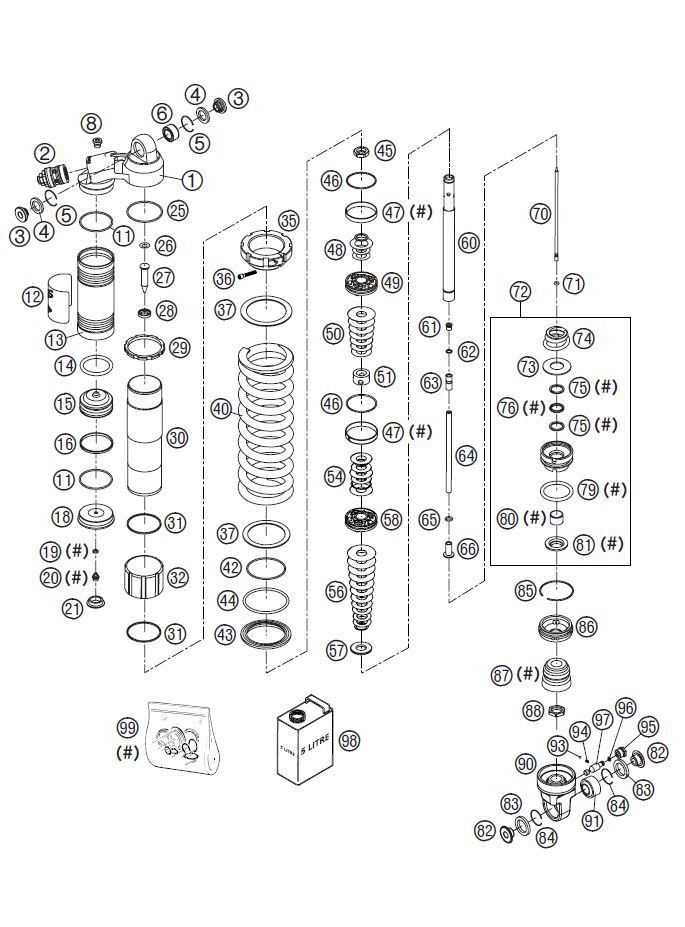

Zadní tlumič v rozloženém stavu - zvětšit obrázek

Další schémata:

Zadní tlumič v rozloženém stavu - díly:

Díl	Kód dílu Název dílu	Cena / ks vč. DPH	Doporuč. počet
1.	50180357SHOCK ABS.CASE 30,5 B21 82GR03	6 136 Kč	ks
2.	50180213S7DCC-COMPR.DAMP.CONTROL CPL. 04	4 998 Kč	ks
3.	46180061ADAPTOR-BUSH 12X26	180 Kč	ks
4.	46180003OIL SEAL KGW D=25	108 Kč	ks
5.	50180168WASHER KGW D=25	69 Kč	ks
6.	50180005BUSHING KGW 1525 HD	591 Kč	ks
8.	50180095BLEED PLUG R 1/8	114 Kč	ks
11.	46810340O-RING NBR 45X2	43 Kč	ks
12.	52000041WP CAUTION (PDS KTM) 58X83	54 Kč	ks
13.	50180096RESERVOIR SCREW L140 GREY	1 557 Kč	ks
14.	46811043O-RING VITON 35X5	83 Kč	ks
15.	50180108SEPARATION PISTON D=46, H=29	541 Kč	ks
16.	46810324PISTON RING 3,9X1,5X138	466 Kč	ks
18.	46811209RESERVOIR CAP D=46	545 Kč	ks
19.	46810893O-RING NBR 5,28X1,78	28 Kč	ks
20.	36120151SCREW PLUG M5X6	78 Kč	ks
21.	46811208RUBBER CAP "DO NOT OPEN"	108 Kč	ks
25.	50180097O-RING 52X2	43 Kč	ks
26.	50180177WASHER 16X8,2X0,6	43 Kč	ks
27.	50180359NEEDLE D=10 L=33/47	277 Kč	ks
28.	50180271SCREW CAP M20x1, D=11	330 Kč	ks
29.	50180270LOCK WASHER	438 Kč	ks
30.	50180309TUBE L=193 PDS	2 137 Kč	ks
31.	50180133CIRCLIP 50X1,5	114 Kč	ks
32.	50180081SPRING GUIDANCE L=40	453 Kč	ks
35.	50180354SPRING RETAINER M5 2003	844 Kč	ks
36.	0912050303AH SCREW DIN0912-M 5X30	29 Kč	ks
37.	50180114INTERM.RING SCREW SPRING RET.	189 Kč	ks
40.	91210004SPRING 250 80N/MM D=12,5 (62)	3 175 Kč	ks
40.	91210005SPRING 250 84N/MM D=13,0 (62)	3 175 Kč	ks
40.	91210006SPRING 250 88N/MM D=13,0 (62)	3 249 Kč	ks
42.	50180273CIRCLIP 58,2X2	114 Kč	ks
43.	50180355% SPRING RETAINER D=80 2003	1 005 Kč	ks
44.	50180352O-RING VITON 66,27X3,53	94 Kč	ks
45.	50180141PISTON ROD NUT M16X1	284 Kč	ks
46.	50180099O-RING VITON 44,17X1,78	94 Kč	ks
47.	50180135PISTON RING 50-8	397 Kč	ks
48.	50180054SHIM 16X28X0,20	50 Kč	ks
48.	50180209WASHER 21X36X0,25	57 Kč	ks
48.	50180210WASHER 16X21X1	50 Kč	ks
50.	50180074SHIM 16X32X0,30	57 Kč	ks
50.	50180075SHIM 16X34X0,30	57 Kč	ks
50.	50180076SHIM 16X36X0,30	57 Kč	ks
50.	50180077SHIM 16X38X0,30	57 Kč	ks
50.	50180078SHIM 16X40X0,30	65 Kč	ks
50.	50180079SHIM 16X42X0,30	65 Kč	ks
51.	50180269SANDWICH BUSH D25XD16X14,5/D	455 Kč	ks
54.	46811637PRESSURE RING 36X32,25	57 Kč	ks
54.	50180049SHIM 16X36X0,15	57 Kč	ks
56.	50180034BACKPLATE 16X20X0,30	50 Kč	ks
56.	50180055SHIM 16X30X0,20	57 Kč	ks
56.	50180056SHIM 16X32X0,20	57 Kč	ks
56.	50180057SHIM 16X34X0,20	57 Kč	ks
56.	50180058SHIM 16X36X0,20	57 Kč	ks
56.	50180059SHIM 16X38X0,20	57 Kč	ks
56.	50180069SHIM 16X40X0,25	65 Kč	ks
56.	50180070SHIM 16X42X0,25	65 Kč	ks
56.	50180071SHIM 16X44X0,25	65 Kč	ks
57.	50180224DISC REBOUND H13	343 Kč	ks
58.	50180407PISTON 6+6X7/4,5	1 881 Kč	ks
60.	50180291PISTON ROD D=18 M16X1 02	3 235 Kč	ks
61.	50180200BUSH M8X1	203 Kč	ks
62.	50180157O-RING VITON 7X1,5	69 Kč	ks
63.	50180201NEEDLE SEAT M8X1	315 Kč	ks
64.	50180284TUBE M8X1 L=143,5	170 Kč	ks
65.	48600049O-RING NBR 8X2	29 Kč	ks
66.	50180279TUBE ADAPTOR M8X1 L=23	246 Kč	ks
70.	50180278NEEDLE FOR REBOUND MODIFICAT.	272 Kč	ks
71.	46811265O-RING VITON 2,2X1,6	69 Kč	ks
72.	50180118S2ADAPTOR CPL. D=50, H=28,5	2 408 Kč	ks
73.	50180107REBOUND RUBBER	132 Kč	ks
74.	50180304STEEL DISC 18,5X43,7X6	246 Kč	ks
75.	50180102BACKUPRING 22,55X1,5	170 Kč	ks
76.	50180101QUAD RING 18X2,62	132 Kč	ks
79.	50180103O-RING 41X5	43 Kč	ks
80.	50180104DU-BUSH 18X20X15	161 Kč	ks
81.	50180082DUST SEAL 1835	295 Kč	ks
82.	50180153ADAPTOR-BUSH KGW 32X10X26	213 Kč	ks
83.	50180159SHAFT SEAL RING KGW D=32	108 Kč	ks
84.	50180175CIRCLIP KGW D=32	99 Kč	ks
85.	50180126CIRCLIP 53X1,75	114 Kč	ks
86.	50180165COVER D=50	606 Kč	ks
87.	50180276BUMP RUBBER WP60 D=18-26	511 Kč	ks
88.	50180283CONTRA NUT M18X1 H=5	271 Kč	ks
90.	50180358SHOCK ABS.BOTTOM 54X20X32	9 000 Kč	ks
91.	50180179PIVOT BEARING KGW 1632	656 Kč	ks
93.	40540603STEEL BALL D=3MM	59 Kč	ks
94.	40540602SPRING D=2,9, L=6,2	40 Kč	ks
95.	50180281RESERVOIR CAP M14X1	246 Kč	ks
96.	50180222O-RING NBR 4X1,5	29 Kč	ks
97.	50180280ADJUSTING SCREW 80 DEG., L=39	284 Kč	ks
98.	50180342S1%SHOCK ABSORBER FLUID 5 LT 03	2 591 Kč	ks
99.	R12005REP.KIT GASKET SEAL PDS 2002	2 158 Kč	ks
